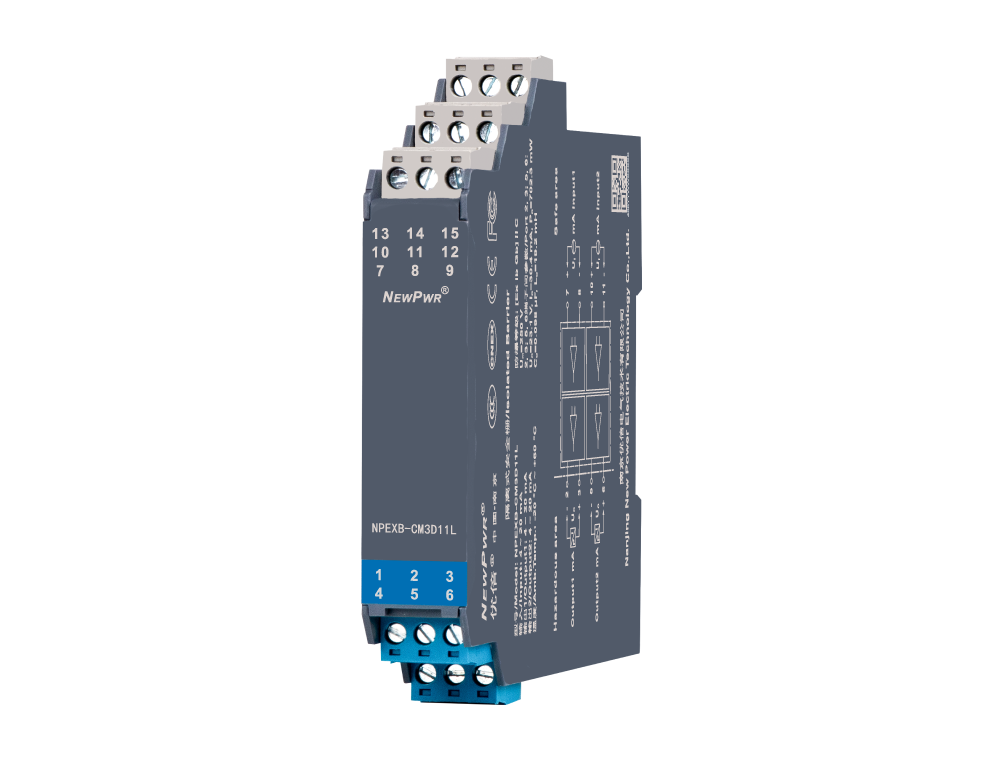

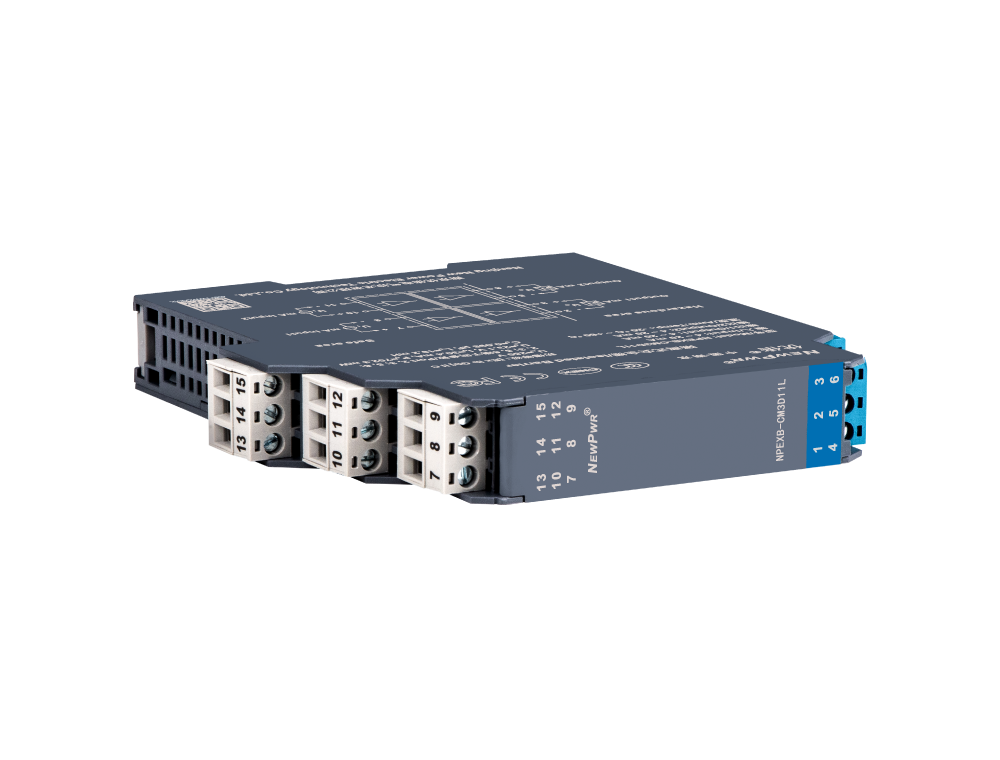

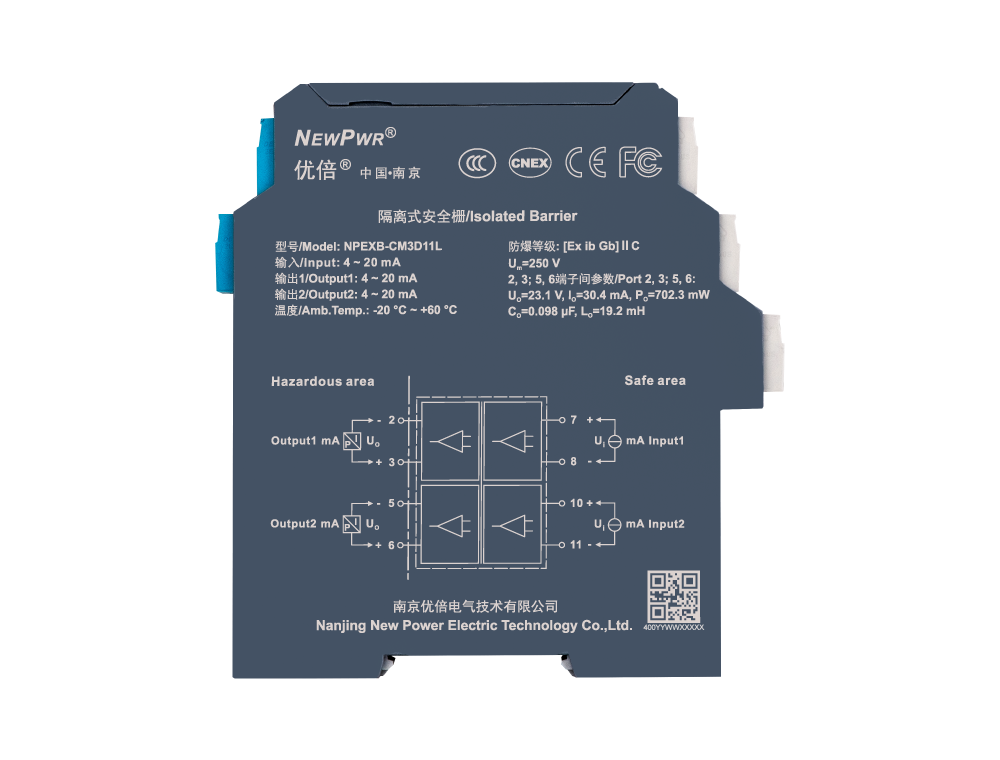

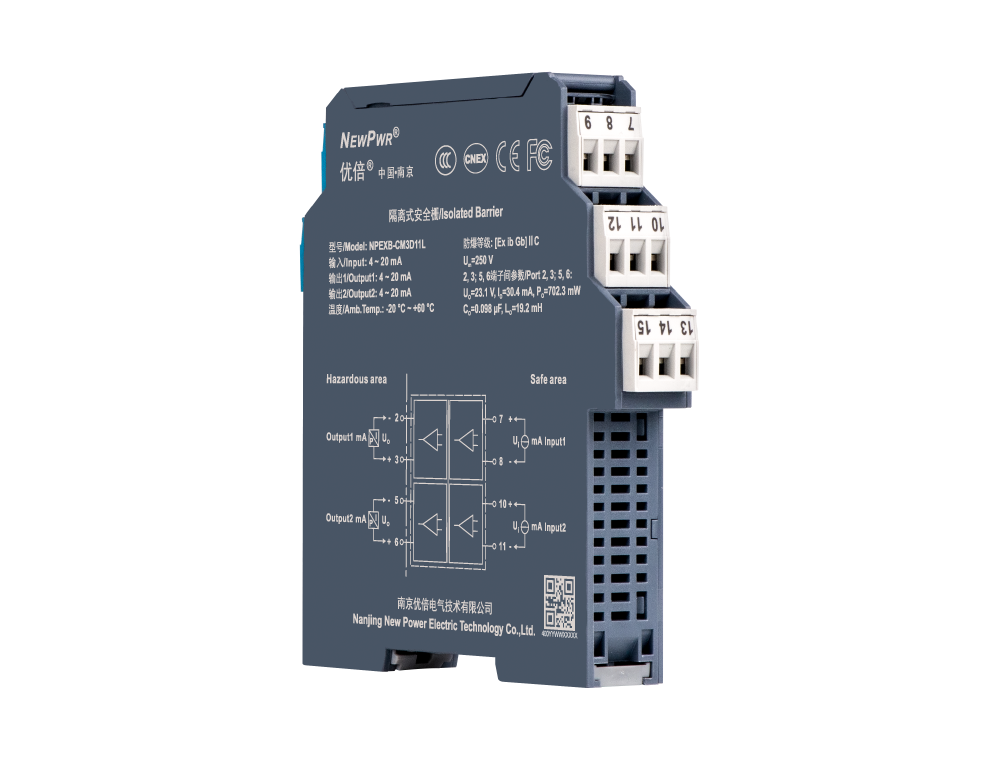

NPEXB-CM3D11L

Analog output isolated barrier, it transfers 4~20mA signals from a safe area to a hazardous area. It has loop powered. The input and output is galvanically isolated from each other.
3118云顶集团(中国区)官方网站 3118云顶集团(中国区)官方网站

Input signal

Output signal

Channels

Power Supply Mode

HART

LFD

Share

【Core technology】


【Installation and disposal】






Installation                                               Disposal



【Technical data】 Supply Input Output Transfer characterisics General parameters EMC data Operating conditions 【Mechanical specifications】 Mechanical specifications 【Certified data】 Certified data
Supply
Loop Powered 18 ~ 30 V DC
Input
Input signal 4 ~ 20mA, HART
Output
Output signal 4 ~ 20mA, HART
Load resistance RL ≤ [(U-8)/0.02]Ω; U is loop powered voltage
Transfer characterisics
Accuracy 0.2 %F.S.
Temperature drift 0.01 %F.S./℃
General parameters
Response time ≤ 2 ms
EMC data
Electromagnetic compatibility IEC 61326-3-1
Dielectric strength ≥ 2500V AC (intrinsically safe side /non-intrinsically safe side)
Insulation resistance ≥ 100 MΩ (Input /Output)
Operating conditions
Operation temperature -20 ℃ ~ +60 ℃
Storage temperature -40 ℃ ~ +80 ℃
Suitable location Mounting in safe area, and connected to the intrinsic safety apparatus in hazardous area zone 1, zone 2, ⅡA, ⅡB, ⅡC，，，ⅢC, T4 ~ T6
Mechanical specifications
Connection method Screw connection
Dimension 17.8mm (W) × 110mm (H) × 117mm (D)
Mounting type DIN35 mm
Certified data
Product approvals NEPSI, CE, FCC, CCS
Ex marking [Ex ib Gb]ⅡC, [Ex ib Db] ⅢC
Um 250 V
Uo 23.1 V (Terminals 2, 3; 5, 6)
Io 27 mA (Terminals 2, 3; 5, 6)
Po 623.7 mW (Terminals 2, 3; 5, 6)
Co (?C) 0.06 μF (Terminals 2, 3; 5, 6)
Lo (?C) 1.9 mH (Terminals 2, 3; 5, 6)
