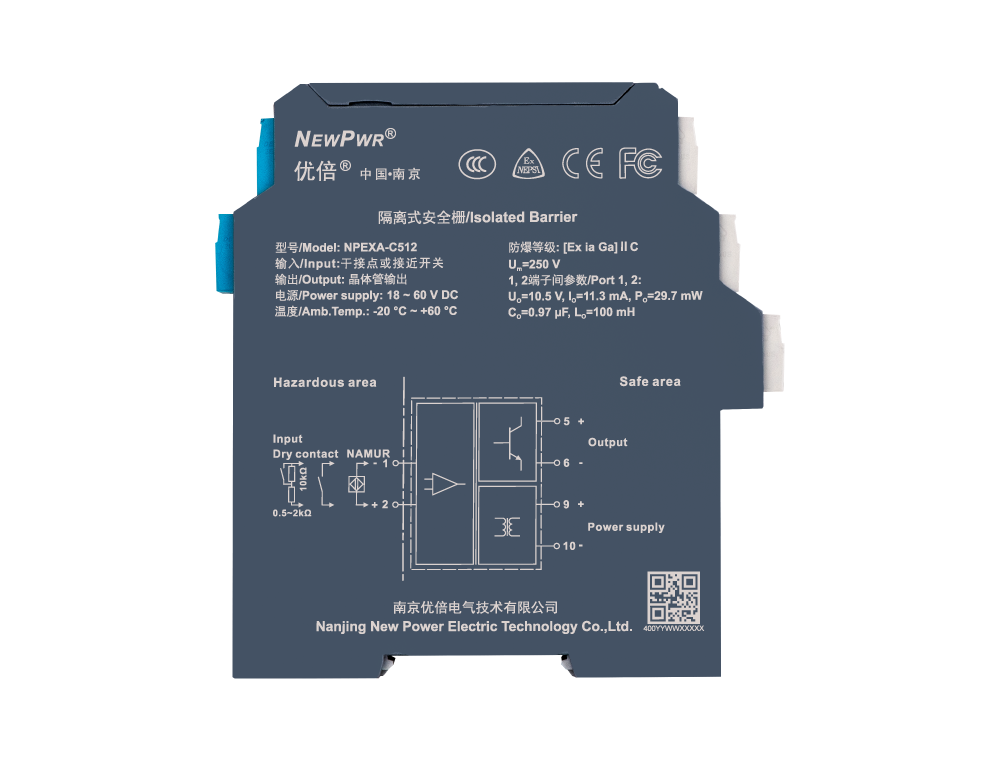

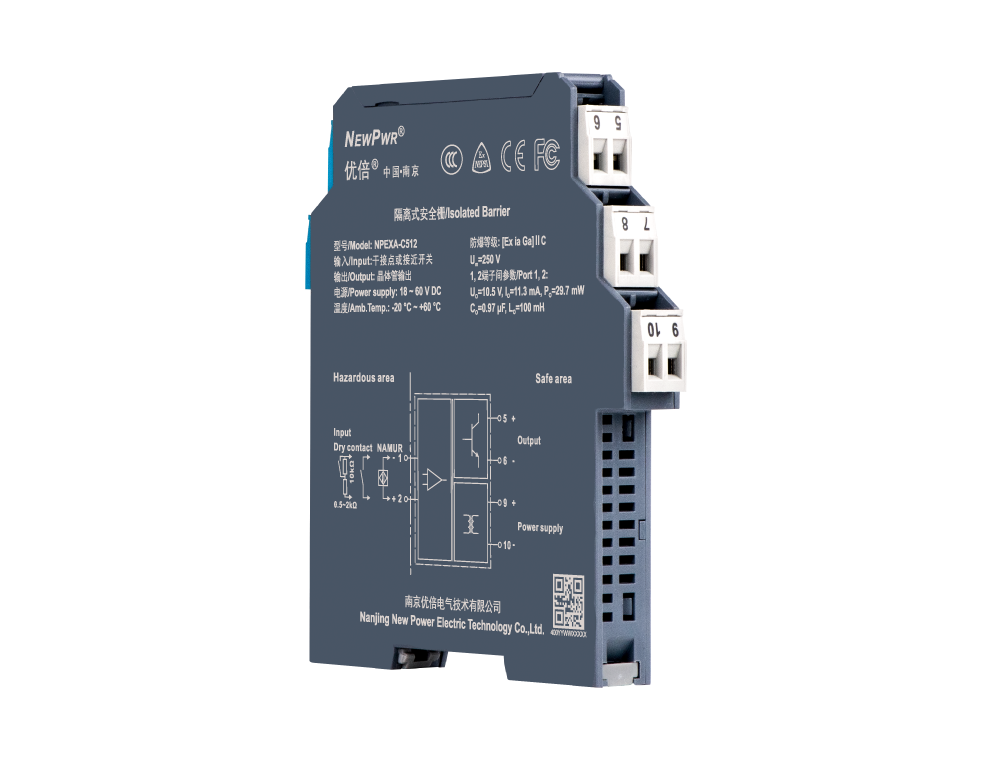

NPEXA-C512

Digital input isolated barrier, it converts switch or proximity detector signals (dry contact or NAMUR) from a hazardous area into transistor signals to a safe area by isolation. The normal output sate and line fault detection function can be set with the DIP switch. The input, output, and power supply are galvanically isolated from each other.
3118云顶集团(中国区)官方网站 3118云顶集团(中国区)官方网站

Input signal

Output signal

Channels

Power Supply Mode

LFD

Share
NPEXA-C512

【Core technology】


【Installation and disposal】






Installation                                               Disposal






【Technical data】 Supply Input Output General parameters EMC data Operating conditions State 【Mechanical specifications】 Mechanical specifications 【Certified data】 Certified data
Supply
Power supply 18 ~ 60 V DC
Input
Input signal Dry contact or NAMUR
Output
Output signal Transistor
External voltage ＜ 40 V DC
Sink current ≤ 40 mA
General parameters
Switching trigger point Input signal > 2.1mA, signal “1”, the yellow LED is always bright；；； Input signal < 1.2mΑ, signal “0”, the yellow LED goes out
Switch frequency ＜ 5 kHz
DIP switch settings S1→a：：：output1 normal mode；；；S1→b：：：inverted mode；；；S2→a：：：LFD on；；；S2→b：：：LFD off
工作功耗 1 W
EMC data
电磁兼容 IEC 61326-3-1
Electromagnetic compatibility ≥ 3000V AC (intrinsically safe side / non-intrinsically safe side); ≥ 1500V AC (Power supply /non-intrinsically safe side)
Insulation resistance ≥ 100 MΩ (Input /Output/Power supply)
Operating conditions
Operation temperature -20 ℃ ~ +60 ℃
Storage temperature -40 ℃ ~ +80 ℃
Suitable location Mounting in safe area, and connected to the intrinsic safety apparatus in hazardous area zone 0, zone 1, zone 2, ⅡA, ⅡB, ⅡC, T4 ~ T6
State
LFD function When input current ≤ 50μA, considers the input line breakdown, the output relay de-energized. If input current ≥ 6.5mA, considers the input circuit short-circuit, the output relay de-energized, the indicator red flashing
Mechanical specifications
Connection method Screw connection
Dimension 12.8mm (W) × 110mm (H) × 117mm (D)
Mounting type DIN35 mm
Certified data
Product approvals NEPSI, CE, FCC, CCC
Ex marking [Ex ia Ga]ⅡC
Um 250 V
Uo 10.5 V (Terminals 1, 2)
Io 11.3 mA (Terminals 1, 2)
Po 29.7 mW (Terminals 1, 2)
Co 0.97 μF (Terminals 1, 2)
Lo 100 mH (Terminals 1, 2)
