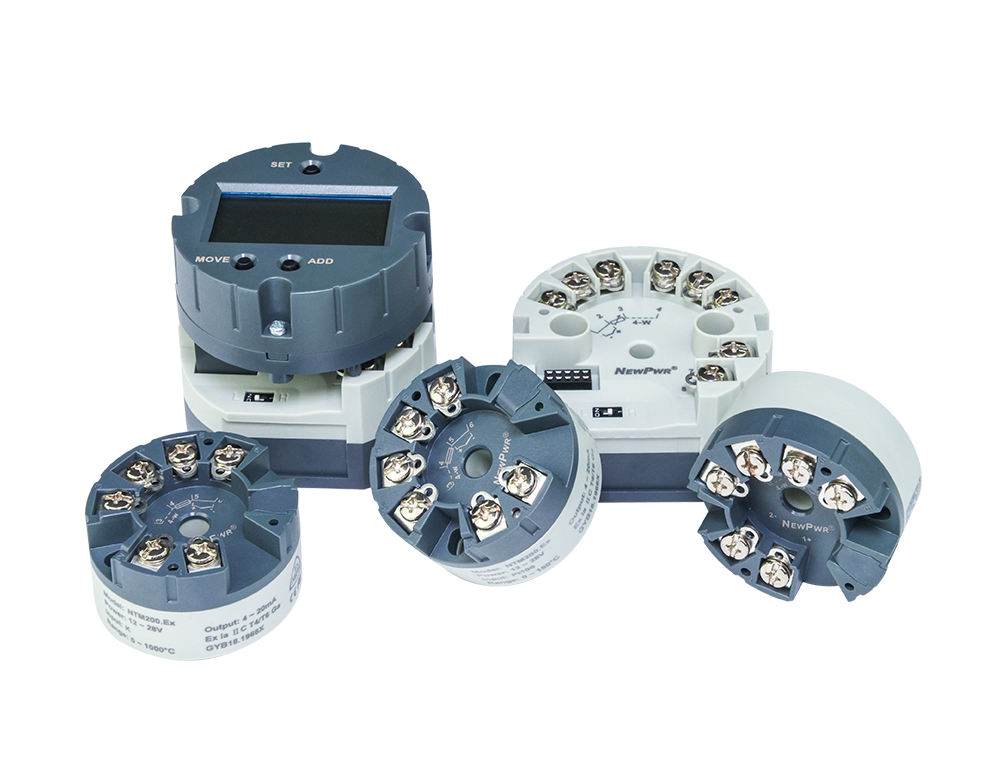

NTM110
【Core technology】
| 供电电源 | 12 ~ 28 V DC 回路供电 |
| 输入信号 | K、、E、、S、、B、、J、、T、、R、、N等热电偶；毫伏信号(-10 ~ 120 mV) |
| 输出信号 | 4 ~ 20 mA |
| 允许负载 | RL ≤ [(U-12)/0.022] Ω；U为回路供电电压 |
| 转换精度-K | -200 ℃ ~ +1372 ℃/＜300 ℃，，±0.3 ℃/≥300 ℃，，±0.1 %F.S |
| 转换精度-E | -100 ℃ ~ +1000 ℃/＜300 ℃，，±0.3 ℃/≥300 ℃，，±0.1 %F.S |
| 转换精度-J | -100 ℃ ~ +1200 ℃/＜300 ℃，，±0.3 ℃/≥300 ℃，，±0.1 %F.S |
| 转换精度-N | -200 ℃ ~ +1300 ℃/＜300 ℃，，±0.3 ℃/≥300 ℃，，±0.1 %F.S |
| 转换精度-S | -50 ℃ ~ +1768 ℃/＜500 ℃，，±0.5 ℃/≥500 ℃，，±0.1 %F.S |
| 转换精度-R | -50 ℃ ~ +1768 ℃/＜500 ℃，，±0.5 ℃/≥500 ℃，，±0.1 %F.S |
| 转换精度-T | -20 ℃ ~ +400 ℃/＜300 ℃，，±0.3 ℃/≥300 ℃，，±0.1 %F.S |
| 转换精度-B | +400 ℃ ~ +1820 ℃/＜500 ℃，，±0.5 ℃/≥500 ℃，，±0.1 %F.S. |
| 转换精度-毫伏信号 | -10 mV ~ 120 mV/＜10 mV，，0.01 mV/≥10 mV，，±0.1 %F.S. |
| 温度漂移 | 50 ppm/℃ |
| 赔偿精度 | 1 ℃ (赔偿领域：：：-40 ℃ ~ +85 ℃) |
| 响应功夫 | ≤ 1 s |
| 电磁兼容 | IEC 61326-1 |
| 介电强度 | ≥ 1500 V AC (输入/输出之间) |
| 绝缘电阻 | ≥ 100 MΩ (输入/输出之间) |
| 工作温度 | -40 ℃ ~ +85 ℃ |
| 贮存温度 | -40 ℃ ~ +85 ℃ |
| 衔接方式 | 螺钉衔接 |
| 螺丝端子力矩 | 0.5 Nm |
| 规格尺寸 | ? 44 × 25.5 mm |
| 导线规格 | 1.5 mm2 |
| 产品认证 | CE |
一入一出
热电偶输入安全栅
