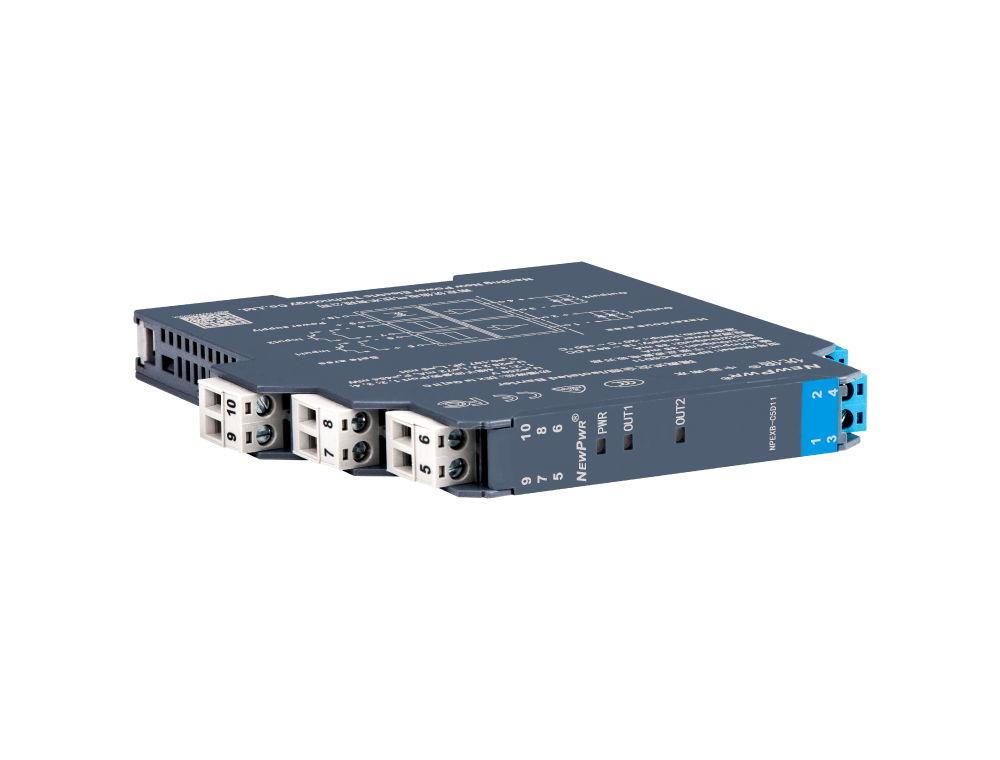

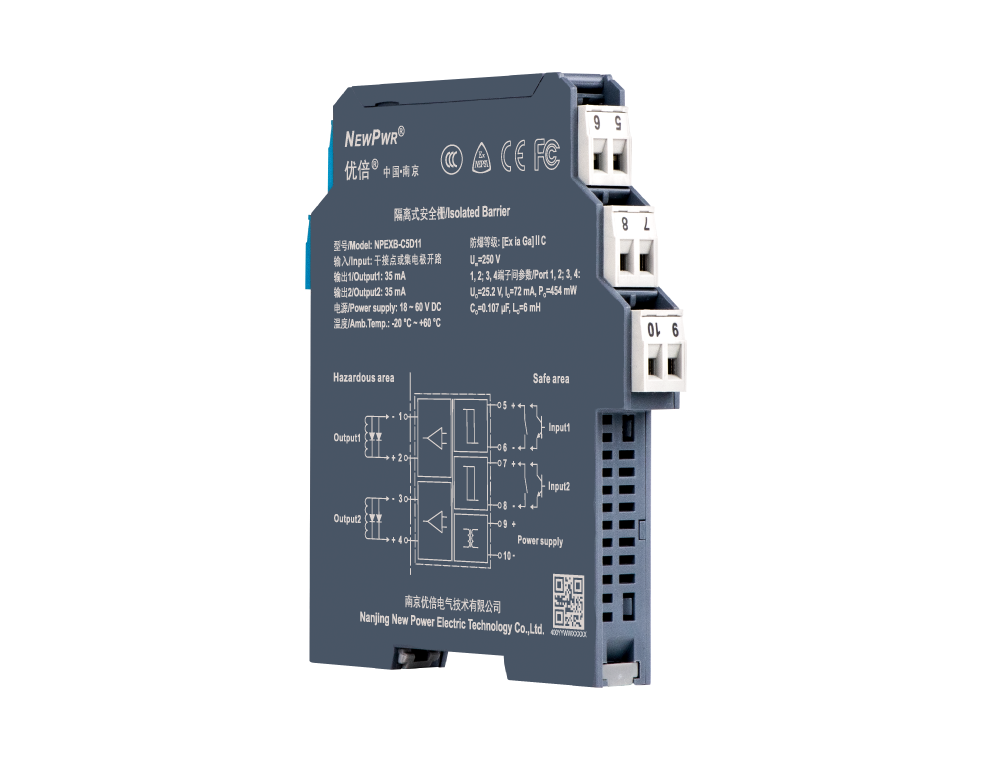

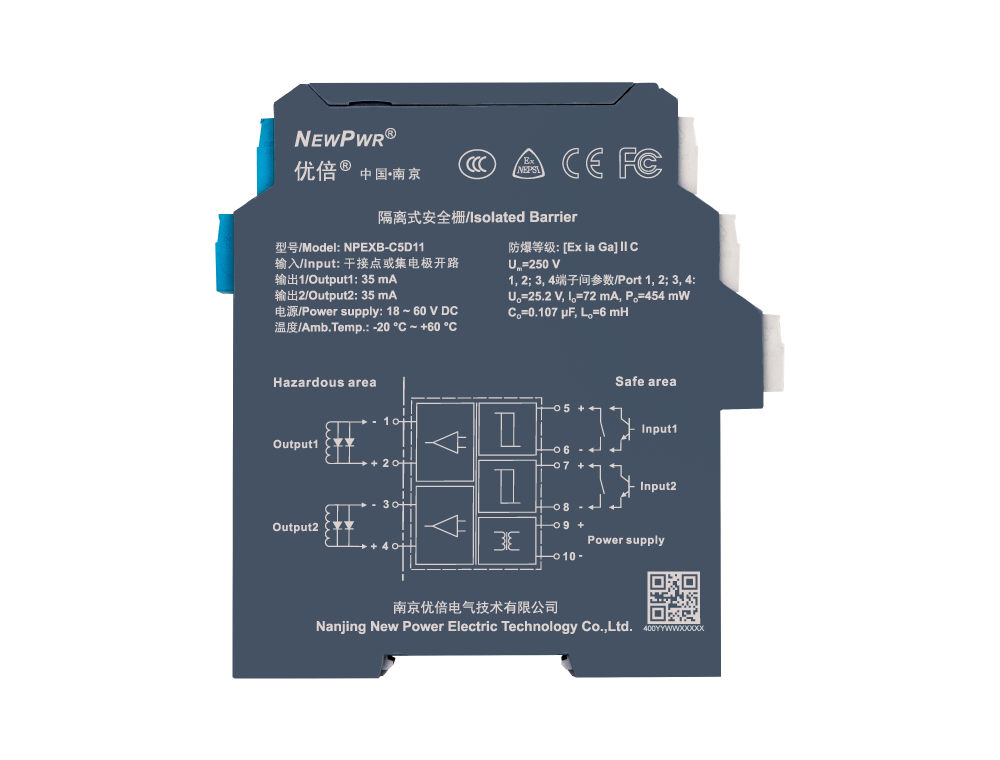

NPEXB-C5D11

Digital output isolated barrier. By switch signal controlling, transfers the dry contact signals from a safe area into current signals to a hazardous area, and drives field device like intrinsically safe valves, audible alarms, etc. It needs an independent power supply. The input, output, and power supply are galvanically isolated from each other.
3118云顶集团(中国区)官方网站 3118云顶集团(中国区)官方网站

Input signal

Output signal

Channels

Power Supply Mode

Share

【Core technology】


【Installation and disposal】






Installation                                               Disposal






【Technical data】 Supply Input Output General parameters EMC data Operating conditions 【Mechanical specifications】 Mechanical specifications 【Certified data】 Certified data
Supply
Power supply 18 ~ 60 V DC
Input
Input signal Dry contact
Output
Output voltage ＞ 8.75 V DC
Output current ≤ 35 mA
Open-circuit voltage 21.5 V DC
General parameters
Response time ＜ 20 ms
Power dissipation ≤ 2.4 W
EMC data
Electromagnetic compatibility IEC 61326-3-1
Dielectric strength ≥ 3000V AC (intrinsically safe side / non-intrinsically safe side); ≥ 1500V AC (Power supply /non-intrinsically safe side)
Insulation resistance ≥ 100 MΩ (Input /Output/Power supply)
Suitable location Mounting in safe area, and connected to the intrinsic safety apparatus in hazardous area zone 0, zone 1, zone 2, ⅡA, ⅡB, ⅡC, T4 ~ T6
Operating conditions
Operation temperature -20 ℃ ~ +60 ℃
Storage temperature -40 ℃ ~ +80 ℃
Mechanical specifications
Connection method Screw connection
Dimension 12.8mm (W) × 110mm (H) × 117mm (D)
Mounting type DIN35 mm
Certified data
Product approvals NEPSI, CE, FCC, CCS, CCC
Ex marking [Ex ia Ga]ⅡC
Um 250 V
Uo 25.2 V (Terminals 1, 2; 3, 4)
Io 72 mA (Terminals 1, 2; 3, 4)
Po 454 mW (Terminals 1, 2; 3, 4)
Co 0.107 μF (Terminals 1, 2; 3, 4)
Lo 6 mH (Terminals 1, 2; 3, 4)
