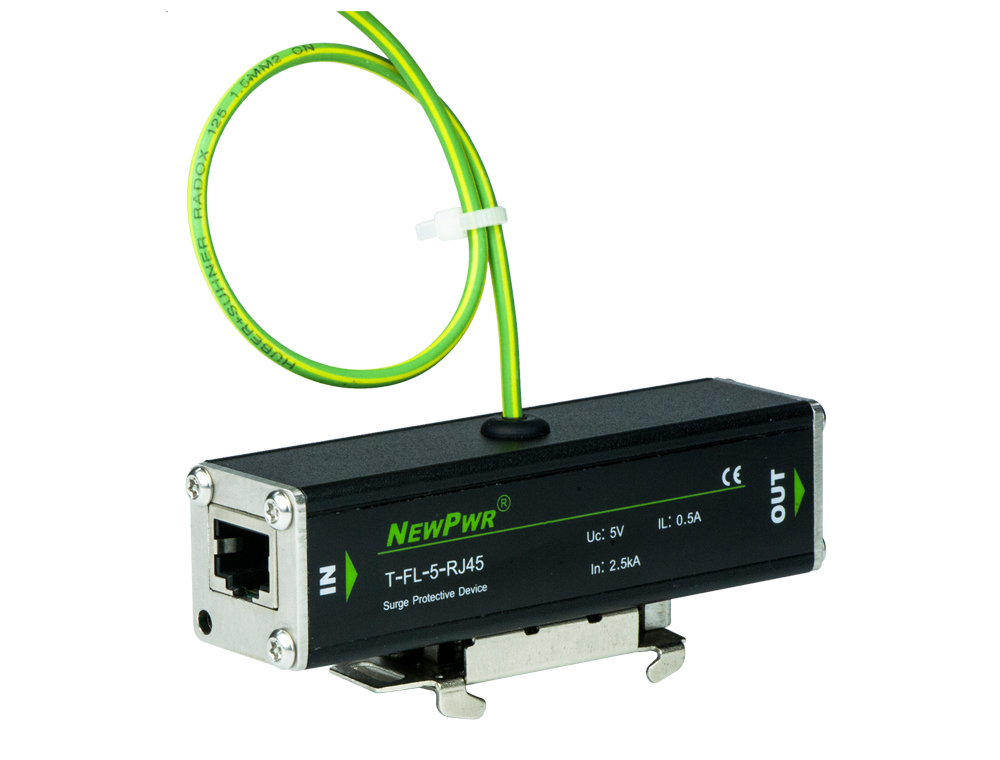

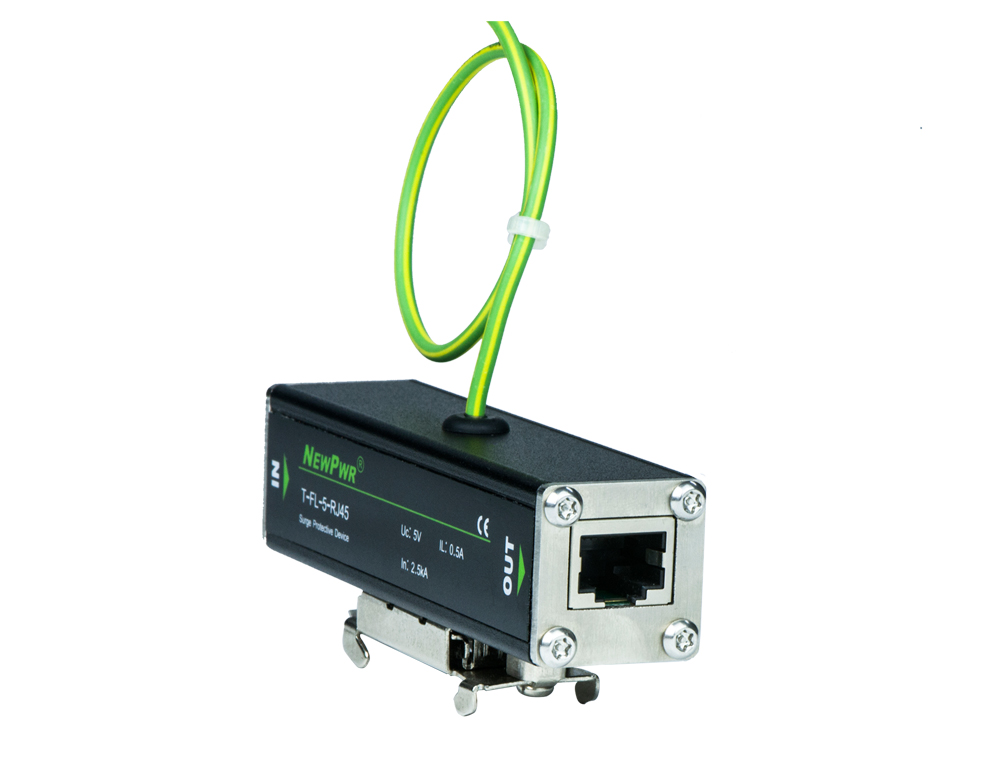

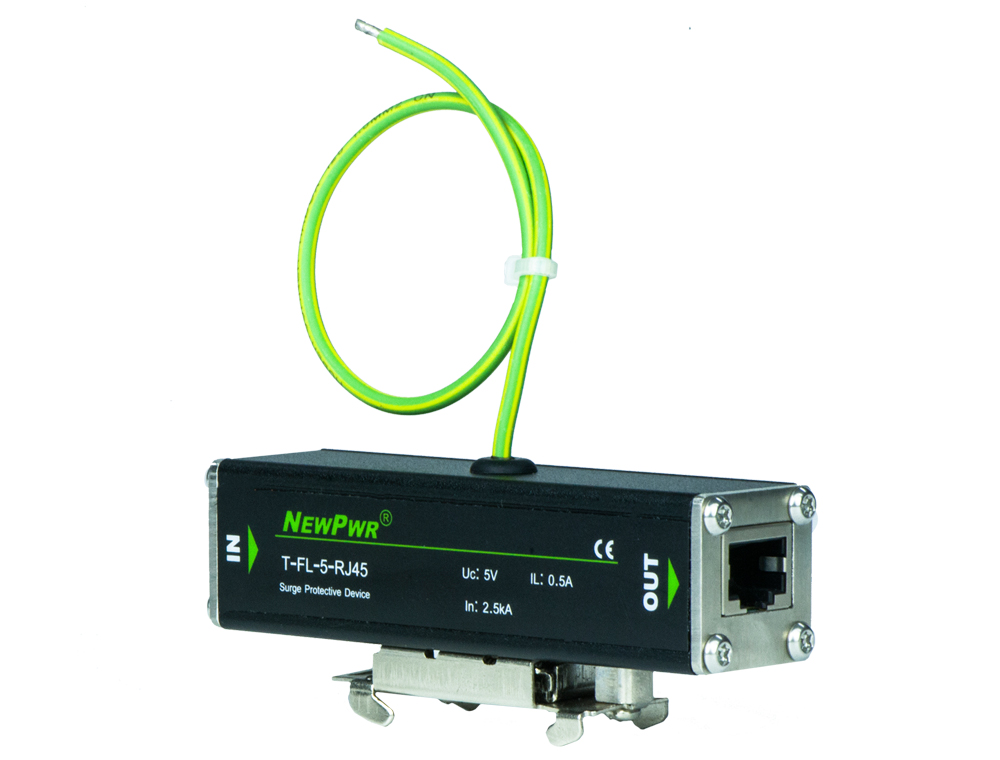

T-FL-5-RJ45.CAT6

According to IEC and GB standard，，SPD can release high voltage pulse energy,and limit surge in a safety voltage level. It is suitable for LPZ0B ~ LPZ1 area and higher.
3118云顶集团(中国区)官方网站

Type

Nomimal Voltage

Share
T-FL-5-RJ45.CAT6

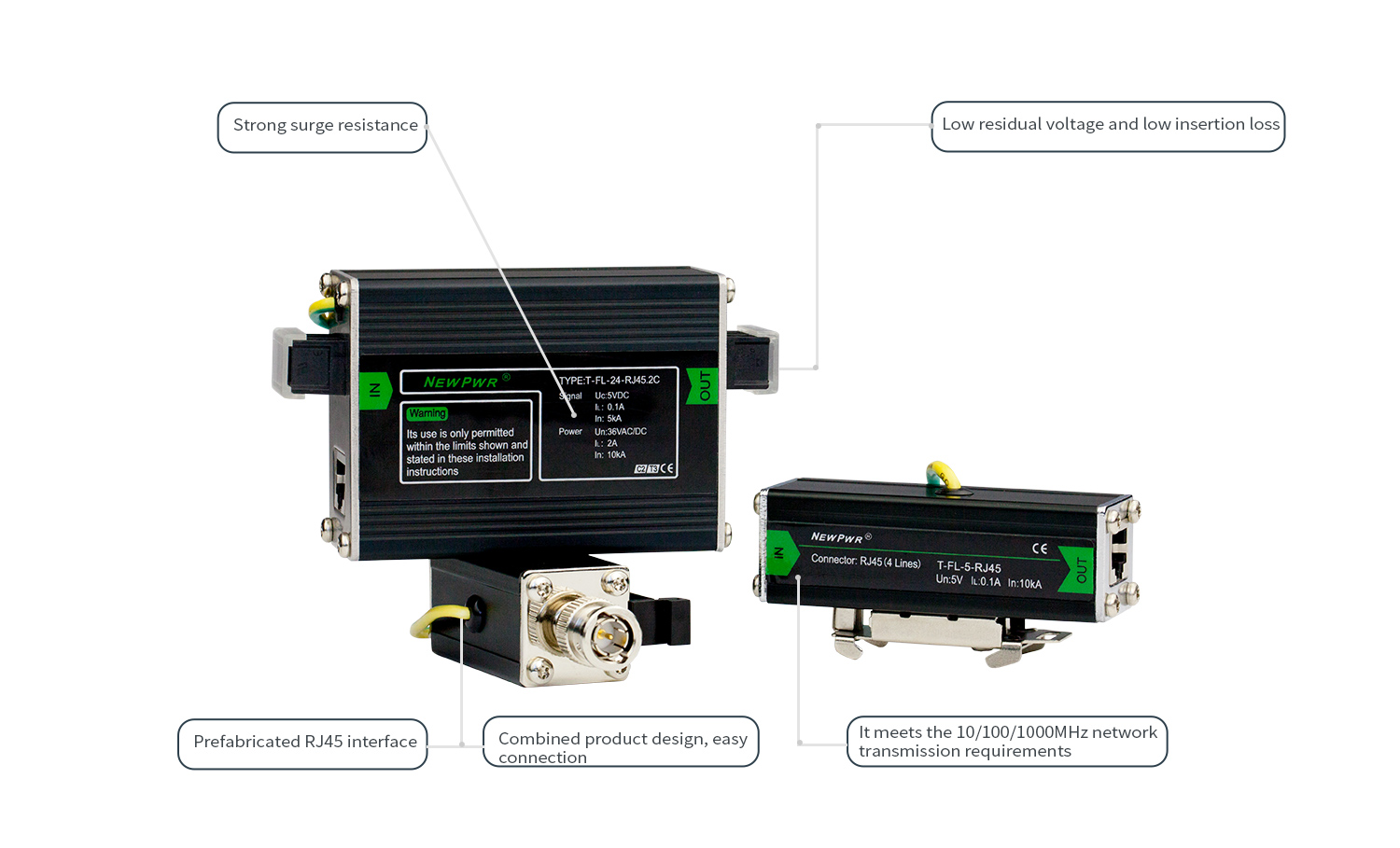

【Core technology】


【Installation and disposal】




                                                                                                                                    Installation                                                                                             Disposal


【Technical data】 General parameters Lightning parameters Operating conditions Shell material 【Mechanical specifications】 Mechanical specifications 【Certified data】 Certified data
General parameters
Nominal voltage Un 5 VDC
Max. continuous operating voltage Uc 5 VDC
Nominal current IL 500 mA
Response time Ta ＜ 1 ns
Bandwidth fG 250 MHz
Lightning parameters
Lightning impulse current Iimp (10/350 μs) ,D1 0.5 kA
Max. discharge current Imax (8/20 μs) ,C2 20 kA
Nominal discharge current In (8/20 μs) ,C2 2.5 kA
Voltage protection level Up (8/20 μs) ，，C2 L-L ≤ 35 V, L-PE ≤ 600 V
Operating conditions
Operating temperature -40 ℃ ~ +80 ℃
Shell material
Material Metal aluminum
Color Black
Protection degree IP20
Mechanical specifications
Installtion 35 mm DIN rail
Interface mode RJ45 (female/female)
Connecting wire size 1.5 mm?, length 250 mm
Certified data
Standards IEC 61643-21/GB/T 18802.21
Product approvals CE, FCC, Lightning protection
